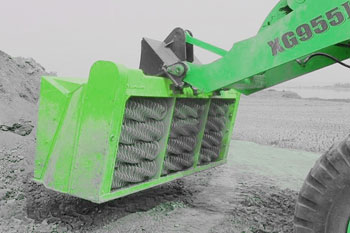

The shredder screening bucket is a heavy-duty accessory which can be used for crushing, screening, mixing, feeding and loading materials etc. It is suitable to any type of loader or excavator. It can separate out soils and construction debris directly at site, or break and screen top soil, coal, ashes and casehardened lime, glass, potter’s clay, process and mix of sludge and filter cake, etc.
| Model | LSS062D | LSS104D | LSS154D | LSS184D | LSS234D |
| Excavator Weight (T) | 10-16 | 16-24 | 21-34 | 28-45 | 35-50 |
| Width(mm) | 1470 | 1470 | 2125 | 2125 | 2598 |
| ISO/SAE(m³) | 0.6/0.75 | 1.2/1.4 | 1.7/1.9 | 1.8/2.1 | 2.5/3.0 |
| Working Pressure(bar) | 120-140 | 160-200 | 160-200 | 160-200 | 160-200 |
| Oil Flow(L/min) | 100-120 | 160-230 | 160-230 | 160-230 | 160-230 |
| Weight(KG) | 1250 | 1950 | 2600 | 3100 | 3400 |
