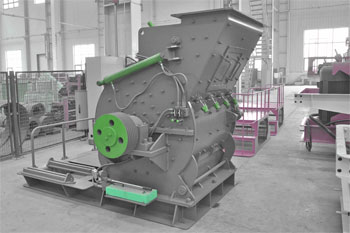

European Type Coarse Powder Mill

European type coarse powder hammer mill is consisted by the steel frame, rotor, blow bar, grizzly screen, etc. The European type coarse powder hammer mill is widely used to crush mineral ores evenly or finely with compressive stress below 320mpa in industries like metallurgy, mining, chemicals, cement, construction, refractory, ceremic, etc.

Big crushing ratio and large capacity;

Low consumption and even granule;

Simple design and compact structure;

Modest investment and easy management.

Specification LSC4008 LSC4012 LSC4015
Rotor Diameter (mm) 750 900 1150
Rotor Length (mm) 800 1200 1500
Rotor Rotation Speed (t/min) 800-1000 800-1000 550-800
Q’ty of Hammers (pcs) 18 32 32
Input Size (mm) <30 <40 <50
Output Size (mm) 0-3 0-5 0-8
Capacity (t/h) 8-15 15-40 40-70
Powder (kW) 75 90 132
Overall Dimension (mm) 2130×1665×1610 2840×2100×2020 3720×2650×2540

Main Spare Parts:
