Sand washer is a washing machine for sand (man-made sand, natural sand). It can remove the impurities covering the surface of sand and at the same time destroy the water vapor layer covering the sand. There are two main types: Screw type and Wheel type.

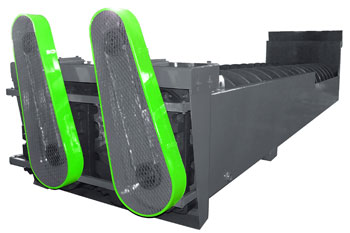

Screw Sand Washer
| Model | Spiral size(mm) | Max Feeding Size(mm) | Capacity(TPH) | Power (KW) | Dimension (mm) | Weight(T) |
| XL915 | ф915×7585 | 10 | 60-100 | 11 | 8900×2861×3821 | 6.3 |
| 2XL915 | ф915×7585 | 10 | 120-200 | 2×11) | 8900×3765×3821 | 11.2 |
| XL1115 | ф1115×9785 | 10 | 100-175 | 18.5 | 11270×3645×4340 | 10.8 |
| 2XL1115 | ф1115×9785 | 10 | 200-350 | 2×18.5) | 11270×4365×4415 | 18 |

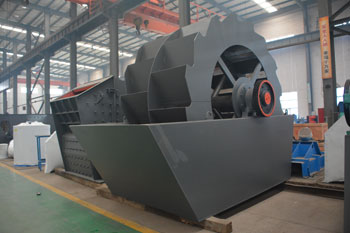

Wheeled Sand Washer
| Model | Wheel size(mm) | Max feed size(mm) | Capacity(TPH) | Power （KW） | Dimension (mm) | Weight(T) |
| XSD2610 | ф2600×1000 | 10 | 20-50 | 5.5 | 3255×1982×2690 | 2.6 |
| XSD2816 | ф2800×1600 | 10 | 30-60 | 11 | 3540×3000×2880 | 4.2 |
| XSD3016 | ф3000×1600 | 10 | 50-100 | 15 | 3845×3000×3080 | 5.5 |
| XSD3620 | ф3600×2000 | 10 | 120-180 | 18.5 | 4300×3564×3685 | 7.4 |
Buckets, blades, gears, bearings, castings, etc.
