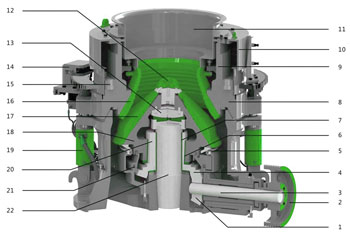

1.Pinion 2. Pulley 3.Countershaft 4.Gear 5.Spherical Floating Seal 6.Outer Bushing 7.Inner Bushing 8.Adjustment Ring 9.Bowl 10.Dust Cover 11.Feed hopper 12.Cone head 13.Ball Bearing 14.Hydraulic Adjustment Motor 15.Clamping Cylinders 16.Bowl Liner 17.Mantle 18.Head 19.Tramp release assembly 20.Eccentric 21.U-Shape Seal 22.Main Shaft.

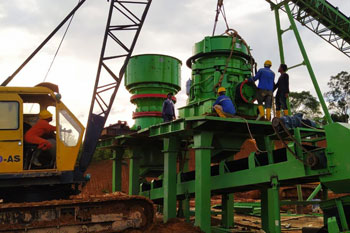

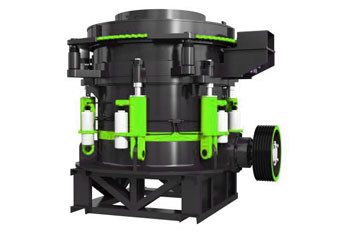

1.Increased eccentricity improves capacity.
2.Faster speed and increased motor power optimizes fineness in discharge.
3. Elevate moving cone dispatch center to optimize cavity design;
4. Interparticle crushing works between materials that increases the working life of mantle and bowl liner. Providing more consistent gradation and superior cubic products, better performance in construction and sand making area.
5. Hydraulic motor setting adjustment and lock cylinder make it easy to reset CSS. The hydraulic tramp release cylinders make it easy to pass tramp iron and clean cavity. Less downtime reduces maintenance cost.
6. Due to advanced design, the bearings have a larger bearing area and larger bearing capacity to have longer service life.
7. Overall casting frame with box beam design characterized by larger strength.

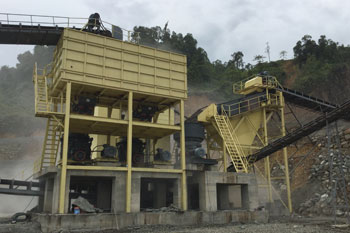

| Type | Cavity Type | Feeding Opening(mm) | CSS (mm) | Capacity(TPH) | Power(KW) |
| HPC200 | F | 95 | ≥13 | 90-200 | 160 |
| M | 125 | ≥17 | 120-220 | ||
| C | 190 | ≥19 | 140-250 | ||
| HPC300 | F | 105 | ≥10 | 110-260 | 220 |
| M | 150 | ≥15 | 175-325 | ||
| C | 210 | ≥20 | 180-385 | ||
| EC | 230 | ≥25 | 200-440 | ||
| HPC400 | F | 110 | ≥14 | 185-350 | 315 |
| M | 195 | ≥20 | 255-435 | ||
| C | 250 | ≥25 | 295-580 | ||
| EC | 295 | ≥30 | 325-630 | ||
| HPC500 | F | 133 | ≥16 | 280-455 | 400 |
| M | 200 | ≥22 | 345-605 | ||
| C | 285 | ≥30 | 405-790 | ||
| EC | 330 | ≥38 | 445-855 |
