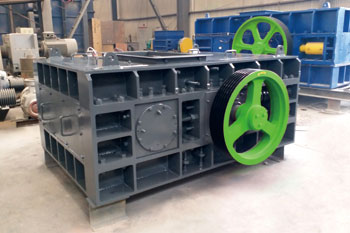

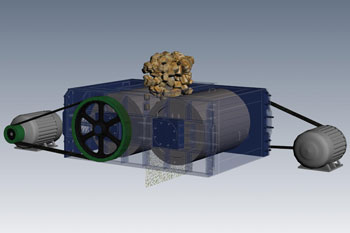

Double Roller Crusher is equipped with two high strength wear-resistant alloy rollers. Relative rotation generates high extrusion pressure which crush the material. Materials fed into the space between the two rollers, suffered both extrusion and shear force, crowd rolling, cutting and grinding, then it is crushed into the required size.
| Model | Max Feeding Size (mm) |
Output Size (mm) |
Capacity (TPH) | Power (KW) | Protection Mode |
Transmission mode |
| 2PG-10CT | 120 | 10-50 | 2-20 | 3×2 | Spring | V-belt or Coupling |
| 2PG-30CT | 120 | 10-50 | 6-40 | 5.5*2 | ||
| 2PG-50CT | 200 | 10-60 | 10-80 | 15*2 | ||
| 2PG-60CT | 300 | 10-80 | 20-150 | 18.5*2 | ||
| 2PG-80CT(Y) | 400 | 10-100 | 30-200 | 30*2 | Spring or Hydraulic Coupling | |
| 2PG-100CT(Y) | 300 | 10-90 | 40-280 | 37*2 | ||
| 2PG-120CT(Y) | 400 | 10-120 | 50-350 | 45*2 | ||
| 2PG-150CT(Y) | 600 | 10-150 | 65-450 | 55*2 | ||
| 2PG-220CT(Y) | 800 | 10-180 | 80-600 | 75*2 | ||
| 2PG-350CT(Y) | 900 | 10-200 | 90-800 | 110*2 | ||
| 2PG-500CT(Y) | 1200 | 20-300 | 200-2500 | 160*2 | ||
| 2PG-800CT(Y) | 1200 | 20-300 | 300-3500 | 200*2 | ||
| 2PG-1200CT(Y) | 1200 | 20-300 | 400-5000 | 370*2 |
| Model | Max Feeding Size (mm) |
Output Size (mm) |
Capacity (TPH) | Power (KW) |
Protection Mode |
Transmission mode |
| 2PG-5PT | 10 | 3-5 | 15-10 | 3*2 | Spring | V-belt or Coupling |
| 2PG-10PT | 30 | 3-10 | 3-30 | 5.5*2 | ||
| 2PG-30PT | 40 | 3-20 | 6-50 | 15*2 | ||
| 2PG-50PT | 60 | 3-20 | 10-100 | 18.5*2 | ||
| 2PG-66PT(Y) | 80 | 3-30 | 15-130 | 30*2 | Spring or Hydraulic |
|
| 2PG-100PT(Y) | 90 | 3-30 | 30-250 | 37*2 | ||
| 2PG-120PT(Y) | 90 | 3-30 | 40-350 | 55*2 | ||
| 2PG-150PT(Y) | 110 | 3-30 | 60-420 | 75*2 | ||
| 2PG-200PT(C) | 110 | 3-30 | 75-550 | 110*2 | ||
| 2PG-350PT(Y) | 130 | 3-30 | 90-700 | 132*2 | ||
| 2PG-560PT(Y) | 150 | 3-30 | 100-900 | 200*2 |
